MAP-9, MAP-9M MANUAL HYDRAULIC PUNCHER
Product Details
Punching range
For stainless steel plate
Max. thickness 1.6mm (Gauge 16)
For galvannealed steel plate
Max. thickness 3.2mm (Gauge 11)
For panel & switch board
MAP-9 (Manual Type)
Hydraulic punch driver
180 degree rotating
L-head type
Steel head/ Lever design
8 tons output / 10kgs
23mm ram stroke
20 c.c. oil capacity
-----------------------
Content:
Punch dies x 6 sizes
Ø 21.8 (1/2”)
Ø 27.6 (3/4”)
Ø 34.1 (1”) mm
Ø 42.7 (1-1/4”)
Ø 48.7 (1-1/2”)
Ø 60.5 (2”) mm

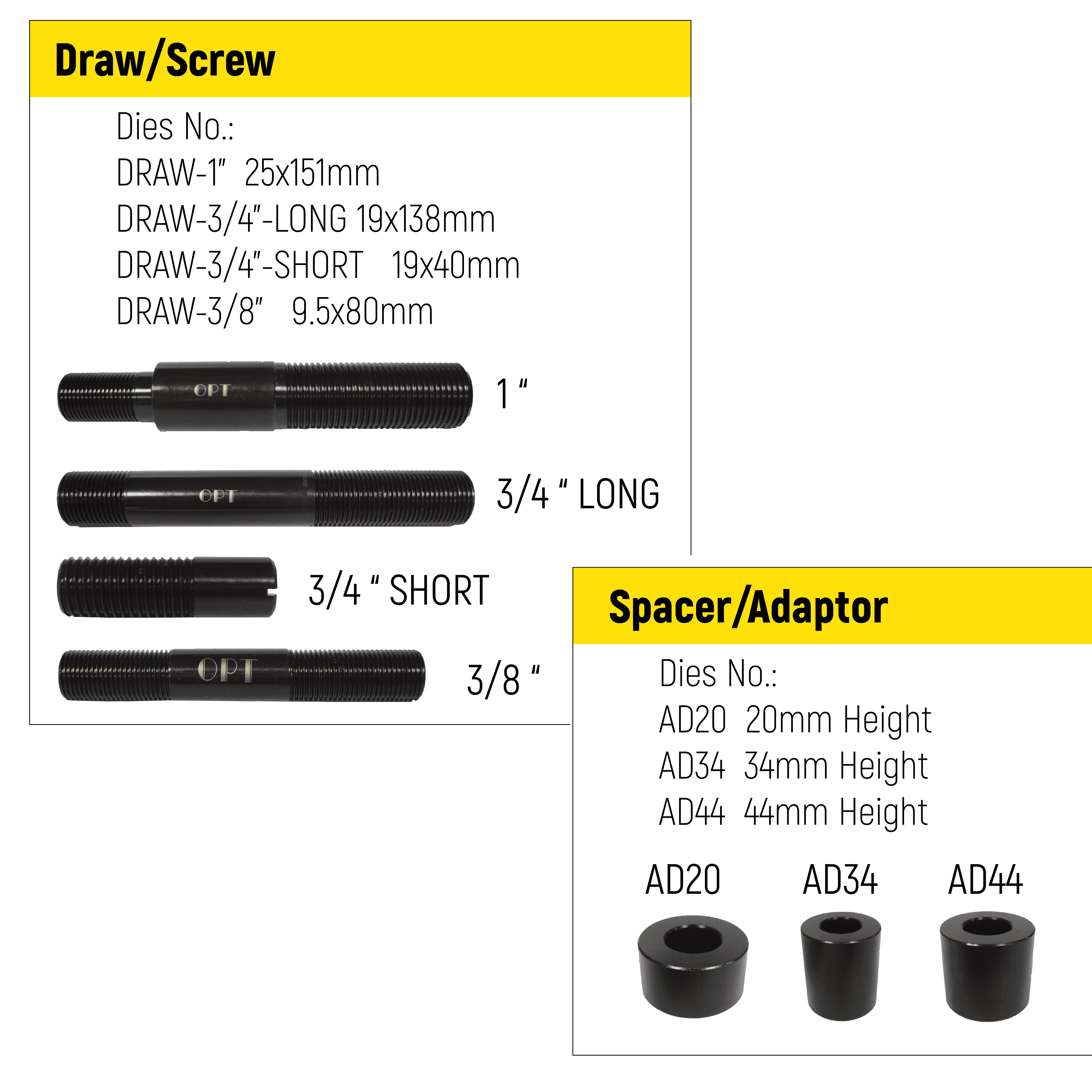

Draw x 2 sizes: 3/8” & 3/4”
Spacer x 3 sizes: AD20 & AD34 & AD44
----------------------------
Content: (M-type)

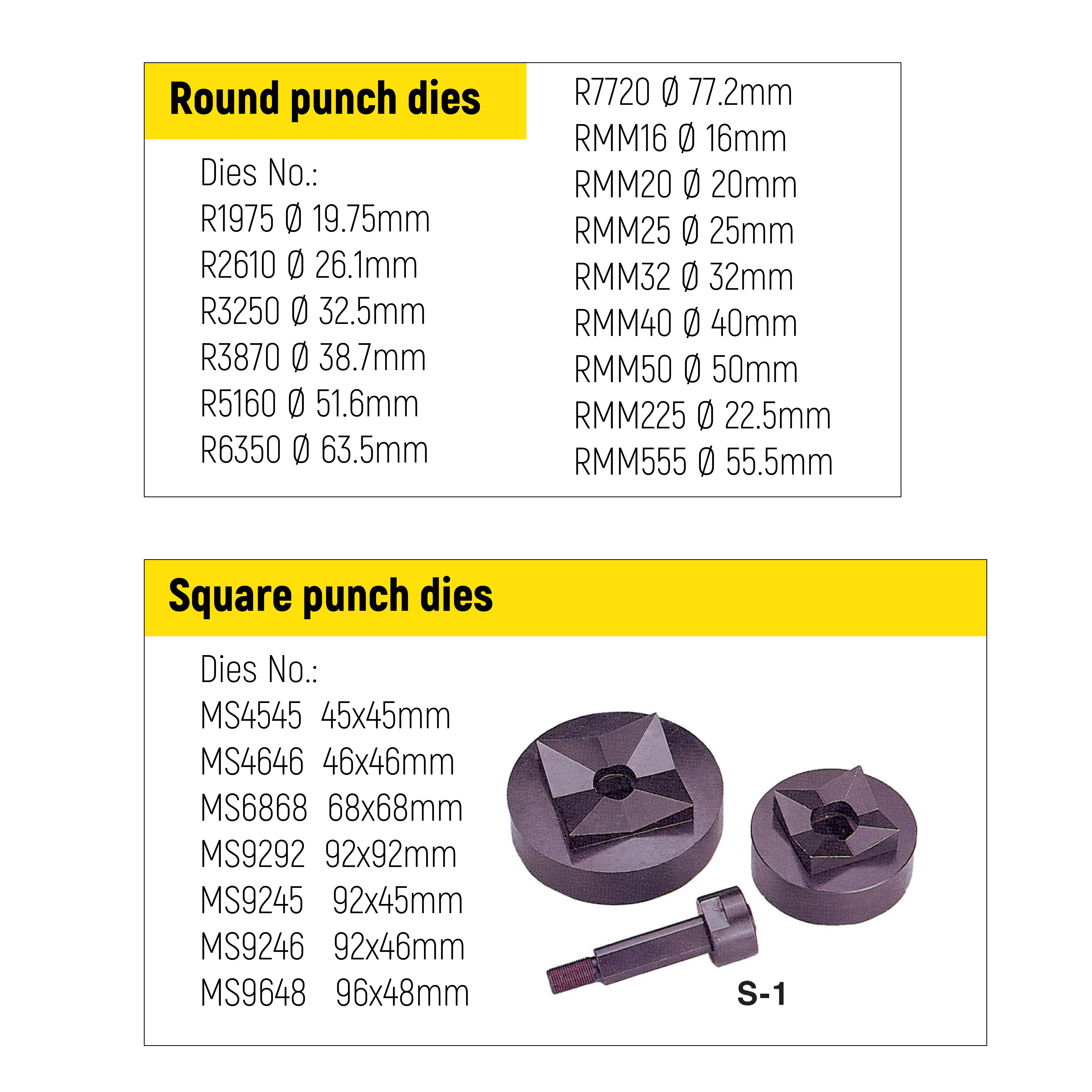

Punch dies x 6 sizes (RMM16-RMM50)
Ø 16mm
Ø 20mm
Ø 25mm
Ø 32mm
Ø 40mm
Ø 50mm
Draw x 2 sizes: 3/8” & 3/4”
Spacer x 3 sizes: AD20 & AD34 & AD44
MAP-9 (Manual Type)
Hydraulic punch driver
180 degree rotating
L-head type
Steel head/ Lever design
8 tons output / 10kgs
23mm ram stroke
20 c.c. oil capacity
Hydraulic punch driver
180 degree rotating
L-head type
Steel head/ Lever design
8 tons output / 10kgs
23mm ram stroke
20 c.c. oil capacity
Punching range
For stainless steel plate
Max. thickness 1.6mm (Gauge 16)
For galvannealed steel plate
Max. thickness 3.2mm (Gauge 11)
For panel & switch board
For stainless steel plate
Max. thickness 1.6mm (Gauge 16)
For galvannealed steel plate
Max. thickness 3.2mm (Gauge 11)
For panel & switch board
| Model No. | Type | Rotation | Output | Stroke | Oil capacity | Weight | Punch dies x 6 sizes | Draw x 2 sizes | Spacer x 3 sizes |
|---|---|---|---|---|---|---|---|---|---|
| MAP-9 | L-head type Steel head/ Lever design | 180° | 8 tons | 23mm | 20 c.c. | 10kgs | Ø 21.8 (1/2”) -Ø 60.5 (2”) mm | 3/8” & 3/4” | AD20 & AD34 & AD44 |
| MAP-9M | L-head type Steel head/ Lever design | 180° | 8 tons | 23mm | 20 c.c. | 10kgs | RMM16-RMM50 | 3/8” & 3/4” | AD20 & AD34 & AD44 |
