CB-250H REMOTE HYDRAULIC BENDING HEAD
Product Details
CB-250H (Remote Type)
Hydraulic bending head (aluminum)
3 tons output
3.9kg excludes pump
55 c.c. oil volume
325(L)x250(W)x73.5(H)mm
For cable CV-IV 100-325mm² bending use
R48mm cable bending radius

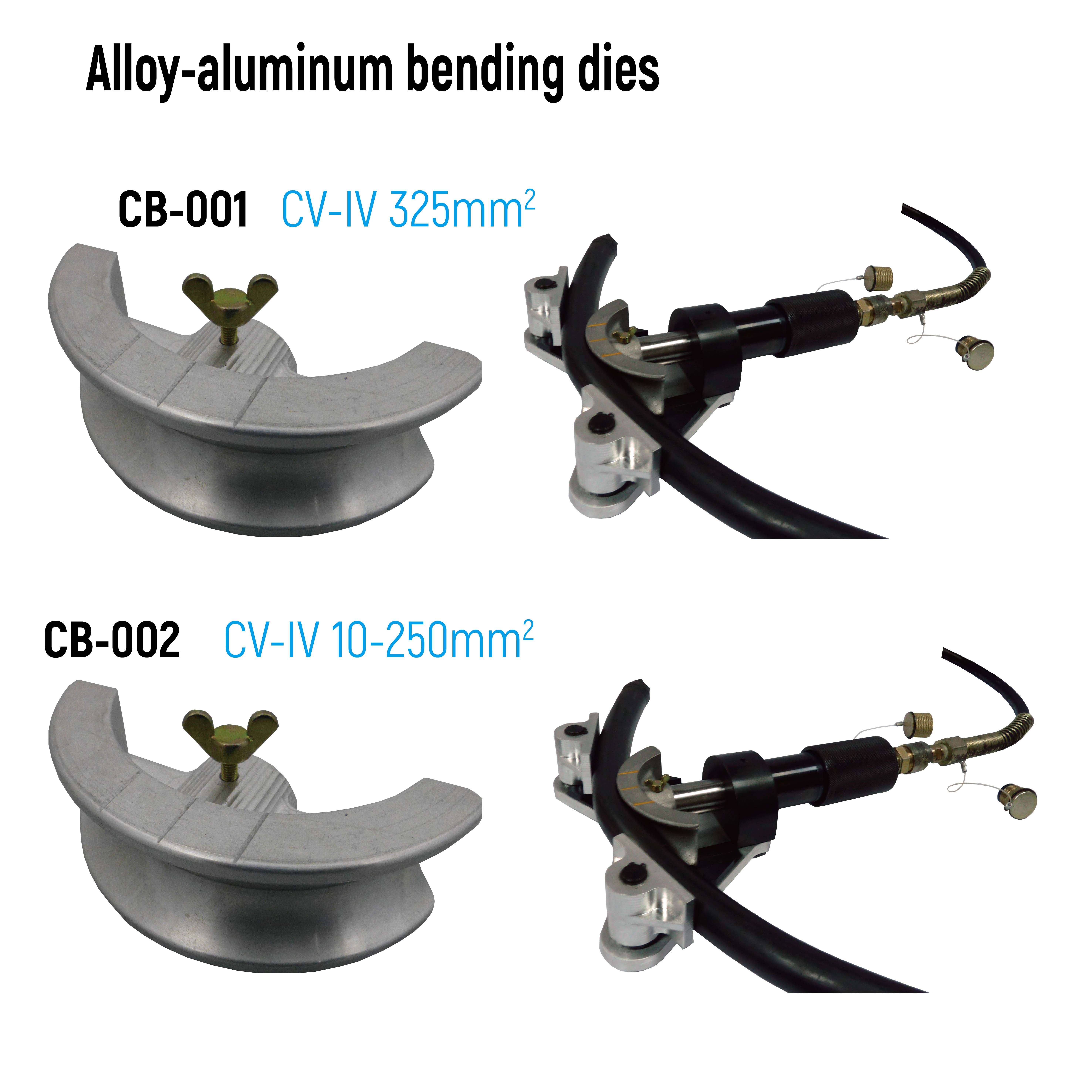

Alloy-aluminum bending dies
CB-001 CV-IV 325mm²
CB-002 CV-IV 10-250mm²
CB-250H (Remote Type)
Hydraulic bending head (aluminum)
3 tons output
3.9kg excludes pump
55 c.c. oil volume
Hydraulic bending head (aluminum)
3 tons output
3.9kg excludes pump
55 c.c. oil volume
For cable CV-IV 100-325mm² bending use
R48mm cable bending radius
R48mm cable bending radius
| Model No. | Output | Oil volume | Application | Cable bending radius | Dimension | Weight | Head material | Remark |
|---|---|---|---|---|---|---|---|---|
| CB-250H | 3 tons | 55 c.c. | For cable CV-IV 100-325mm² bending use | R48mm | 325(L)x250(W)x73.5(H)mm | 3.9kg excludes pump | Aluminum | Remote type |
| CB-001 | CV-IV 325mm² | R48mm | ||||||
| CB-002 | CV-IV 10-250mm² | R48mm |
